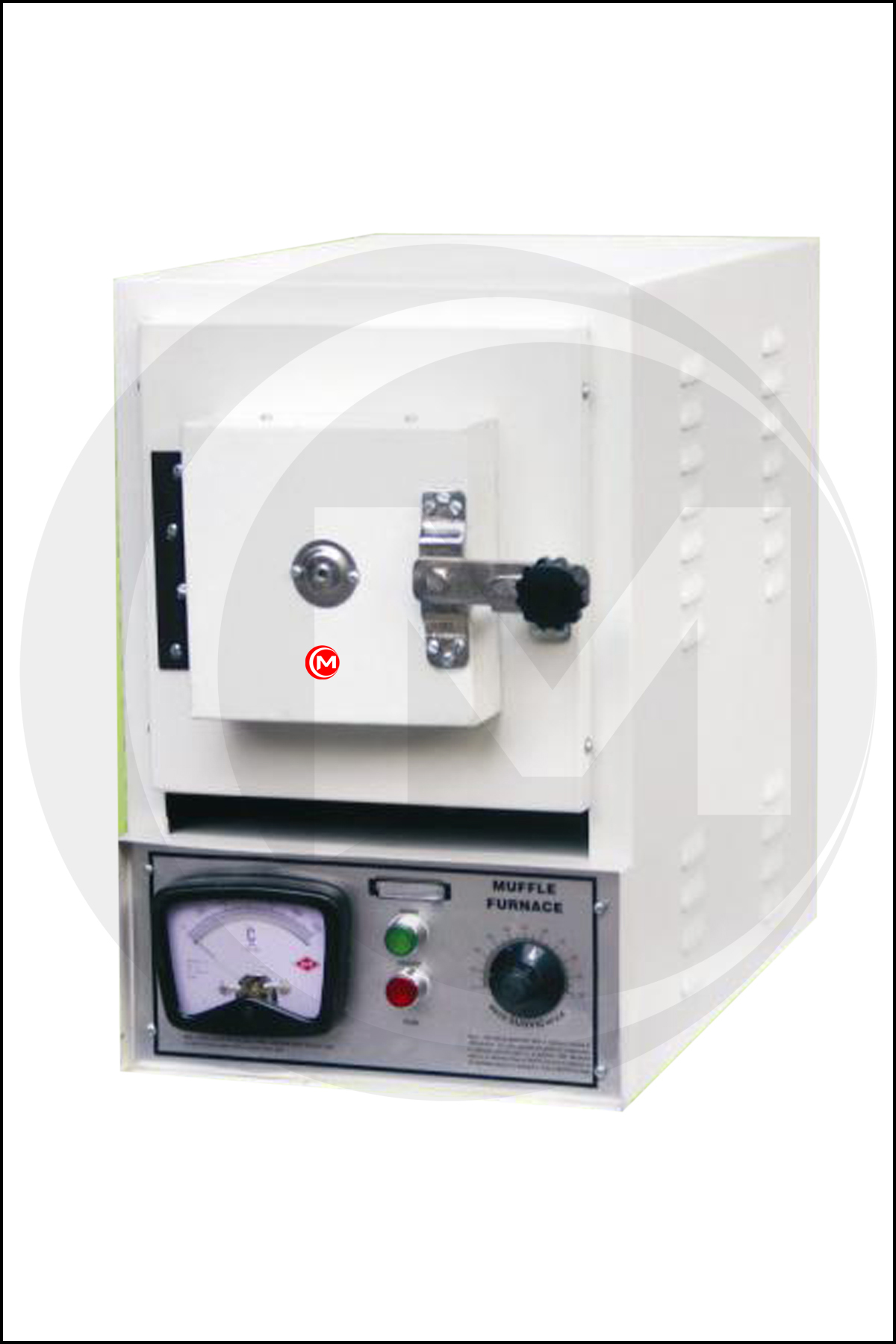

The furnace is fitted with Energy Regulator and pyrometer or Digital Temperature Indicator-cum-Controller (as per user requirement). Fitted in front of furnace with two pilot indicator. Heating elements made of wire specially to high Temp. An alloy to ensure uniform distribution of heat. The panel is fitted at the top or at the side of the furnace. Its salient features are; Outer casing is made of thick Mild Steel duly powder coated. Light weight with ceramic fiber wool insulation (instead of Brick insulation). Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber. Fitted with heavy hinges & door is duly insulated. Maximum working temperature range upto 900°C are fitted with wounded muffle. Maximum Temperature is 1000°C and working temp. 900°C is fitted with thermocouple & silver fuse for protection of chamber.
Temperature is controlled by energy regulator with display of temperature on pyrometer fitted on panel with an accuracy of + 5%. Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 900°C, + 50C fitted on the front panel for easy operations. Temperature is displayed by Digital LED with SV and PV display at front of the Furnace . Front Panel is provided with ON/OFF switch, sun Vic energy regulator, pyrometer and indicators.
